Stainless Steel Utility Sinks Guide: Types, Applications & Selection Tips
In commercial and institutional facilities—from hospital corridors to industrial workshops—there’s one piece of equipment that sees constant use, yet rarely gets the attention it deserves: the utility sink. Often tucked into laundry rooms, kitchens, labs, or maintenance zones, these sinks endure heavy-duty tasks, frequent cleaning, and harsh chemicals. When specified correctly, they support efficiency, safety, and compliance. When overlooked, they become a liability.
Among all materials, stainless steel has emerged as the gold standard for utility sinks in professional environments. But not all stainless steel sinks are created equal. Choosing the right type requires understanding your application, workflow, and regulatory requirements.
This guide dives deep into the world of stainless steel utility sinks—covering materials, configurations, installation types, and real-world applications—to help facility managers, engineers, and procurement professionals make informed decisions.
Why Stainless Steel? More Than Just Durability
Stainless steel is more than just a shiny metal. It’s a high-performance material engineered for demanding environments. Here’s why it dominates in utility sink applications:
- Corrosion Resistance: Formulated with chromium (and in some grades, molybdenum), stainless steel resists rust and chemical degradation.
- Hygienic Surface: Non-porous and smooth, it inhibits bacterial growth and is easy to sanitize—critical in healthcare and food handling.
- Impact & Heat Resistance: Withstands dropped tools, high-pressure washing, and hot water cycles.
- Long-Term Value: While the upfront cost may be higher than plastic or porcelain, stainless steel offers decades of service with minimal maintenance.
Understanding Stainless Steel Grades
Not all stainless steel is the same. The grade you choose impacts performance and longevity:
| Grade | Composition | Best For |
|---|---|---|
| 304 (A2 Stainless) | 18% Cr, 8% Ni | General-purpose use: kitchens, laundries, workshops |
| 316 (A4 Stainless) | 16% Cr, 10% Ni, 2% Mo | High-corrosion environments: labs, marine settings, medical facilities |
| 430 | 16–18% Cr, no Ni | Budget option; lower corrosion resistance; suitable for dry, low-use areas |
Pro Tip: In environments exposed to chlorides (e.g., disinfectants, saltwater, bleach), 316 stainless steel is strongly recommended to prevent pitting corrosion.
Classification by Installation Method
1. Top Mount (Drop-in)
The most common and easiest to install. The sink drops into a cutout in the countertop, with the rim resting on top.
- Pros: Simple retrofit, compatible with most countertops
- Cons: Seam between sink and counter can trap debris
- Ideal for: Renovations, standard industrial setups

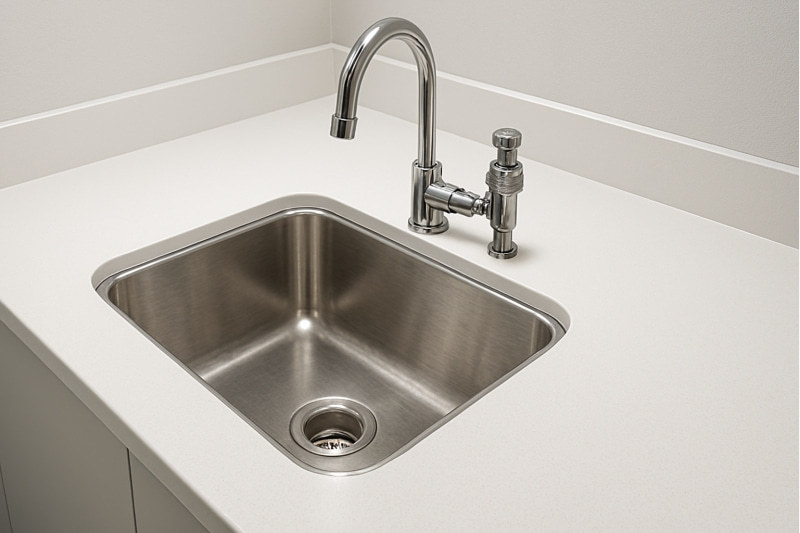

2. Undermount
Installed beneath the countertop, creating a seamless transition from surface to basin.
- Pros: Smooth, cleanable surface; modern appearance
- Cons: Requires solid countertop support; more complex installation
- Ideal for: Laboratories, hospitals, high-end kitchens

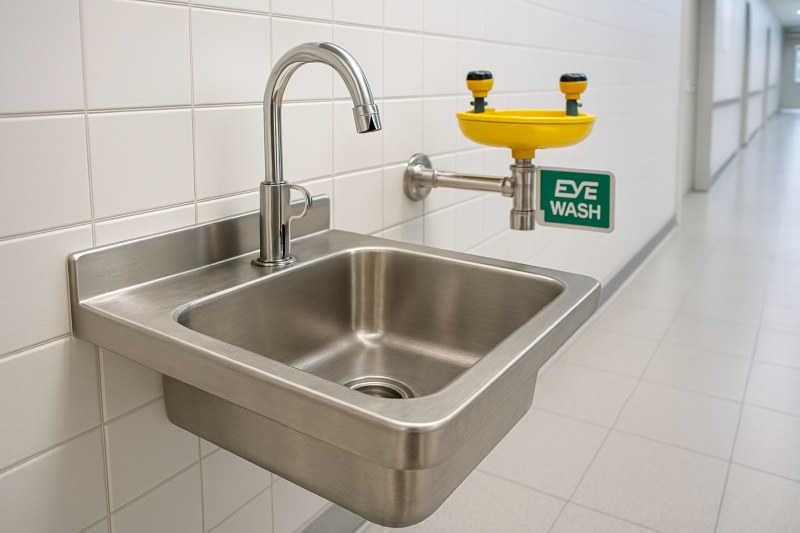

3. Wall-Mounted
Attached directly to the wall, freeing up floor space.
- Pros: Easy floor cleaning; space-saving
- Cons: Limited size; requires strong wall anchoring
- Ideal for: Narrow corridors, restrooms, compact service areas

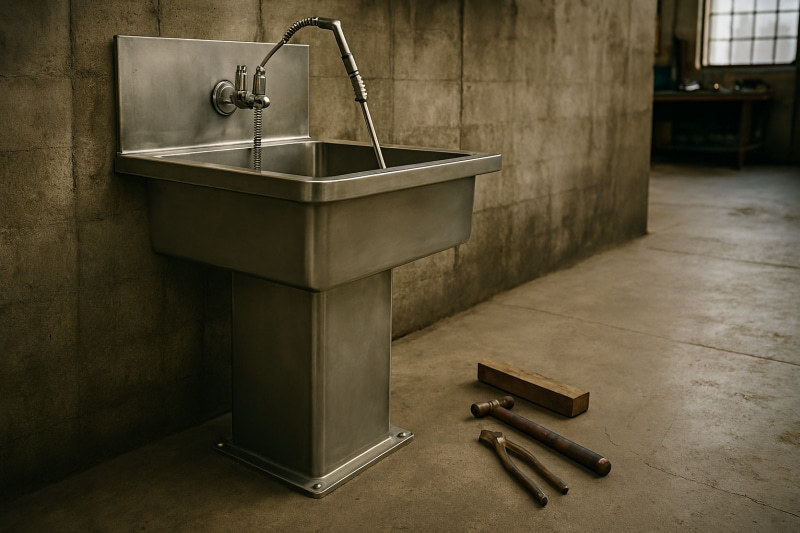

4. Freestanding / Pedestal
Self-supporting units with legs or a pedestal base.
- Pros: Portable, easy to relocate, no countertop needed
- Cons: Takes up more floor space
- Ideal for: Workshops, temporary sites, outdoor use
By Configuration: Single, Double & Triple Compartment Sinks
Single Bowl Sinks
One large basin maximizes capacity for oversized items.
- Use Cases: Washing tools, buckets, mop heads
- Best For: Industrial maintenance, janitorial closets
Double Bowl Sinks
Two separate basins allow task separation—e.g., wash on the left, rinse on the right.
- Use Cases: Food prep, lab glassware cleaning
- Options: Equal bowls or asymmetrical (one deep, one shallow)

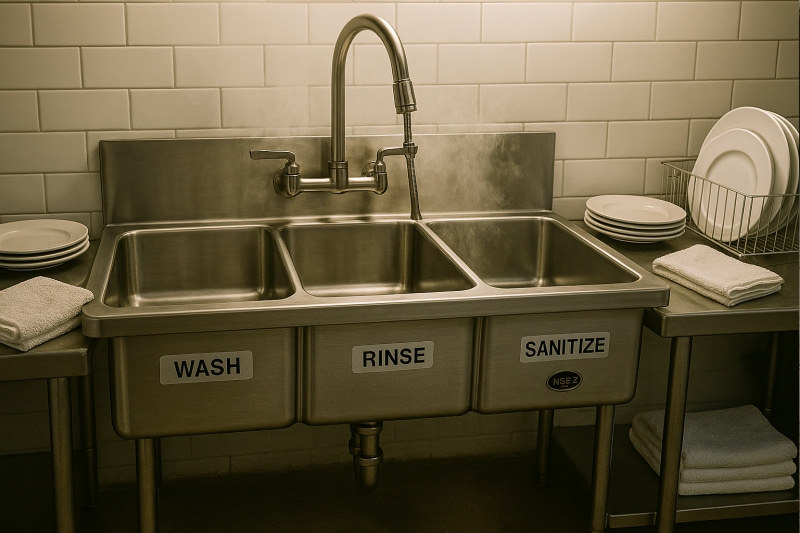

Triple Compartment Sinks
The industry standard for hand-washing dishes in food service.
Three-step process:
- Wash – Detergent and warm water (≥45°C/110°F)
- Rinse – Clean water to remove soap
- Sanitize – Chemical or hot water (≥77°C/170°F for 30 sec)
Regulatory Note: Per the FDA Food Code and NSF/ANSI 2, triple sinks must include overflow protection, removable strainer baskets, and adjustable leveling legs.
By Application & Function: Matching Sink to Environment
Industrial Sinks: Built for Tough Jobs
Used in factories, auto shops, and manufacturing plants.
- Key Features: 16-gauge 304 stainless steel, reinforced corners, optional heating, high-pressure spray nozzles
- Accessories: Hose reels, tool trays, filtration systems
Food Service Sinks: Hygiene Meets Compliance
From hotels to cafeterias, food safety depends on proper sink design.
- Critical Requirements: NSF/ANSI 2 certification, seamless corners, splash guards, drainboards
- Common Types: Three-compartment sinks, prep sinks, mop sinks

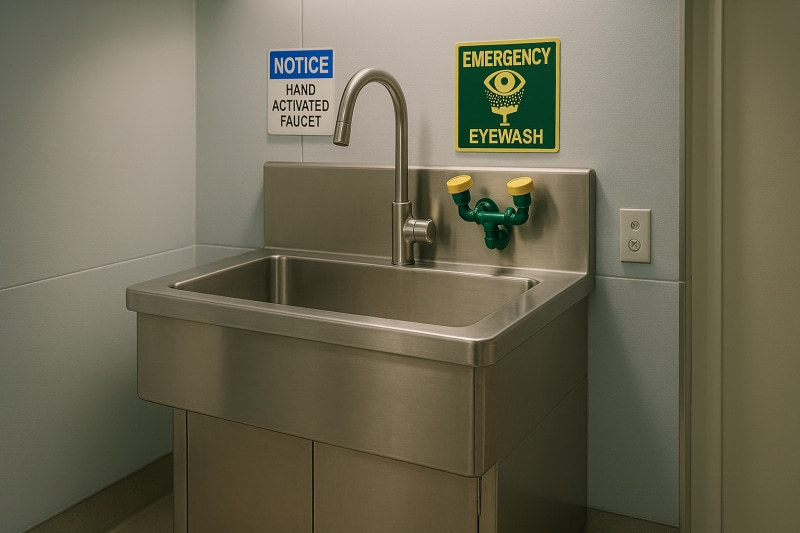

Medical & Healthcare Sinks: Infection Control First
Found in hospitals, clinics, and laboratories, these sinks prioritize sterility.
- Design Standards: Hands-free faucets, anti-splash rims, sealed joints
- Integration: Emergency eyewash stations (per ANSI Z358.1)
- Material: Often 316 stainless steel for superior chemical resistance
Laboratory Sinks: Chemistry-Ready Design
Labs handle acids, solvents, and biohazards—so sinks must be resilient.
- Special Features: 316 stainless or polypropylene liners, gooseneck faucets, anti-siphon devices
- Drainage: May connect to neutralization tanks or closed-loop recovery systems
Outdoor & Frost-Proof Sinks: All-Weather Performance
For construction sites, farms, or cold climates.
- Cold Climate Features: Electric heat tracing, insulated enclosures, drain valves
- Durability: Lockable lids, UV-resistant finishes, heavy-duty casters
Key Features That Define Performance
| Feature | Why It Matters |
|---|---|
| Gauge Thickness | 16-gauge is thicker and more dent-resistant than 18-gauge |
| Radiused Corners | Rounded internal corners prevent dirt buildup and are easier to clean |
| Overflow Protection | Prevents flooding during unattended use |
| Adjustable Legs | Ensures level installation on uneven floors; extends lifespan |
| Drainboard | Provides drying space and reduces water pooling on counters |
| Cover Plates | Convert sink into a temporary work surface when not in use |
How to Choose the Right Utility Sink: A Decision Checklist
Still unsure which sink is right for your facility? Ask yourself these seven questions:
- What is the primary use? → Tools? Dishes? Chemicals? Patient care?
- How frequently will it be used? → High-frequency use demands thicker gauge and robust components.
- Are there regulatory standards to meet? → Look for NSF, FDA, ANSI, or OSHA compliance where applicable.
- What's the available space? → Measure clearance for width, depth, height, and plumbing access.
- Do you need special features? → Heating, spray guns, sensors, or emergency fixtures?
- Is drainage compatible? → Verify pipe size, slope, and venting requirements.
- What's your total cost of ownership? → Factor in lifespan, maintenance, and downtime—not just purchase price.
Conclusion: Invest in Performance, Not Just Price
A stainless steel utility sink is not a commodity—it's a critical component of your facility's operational integrity. Whether it's ensuring sterile conditions in a hospital, maintaining food safety in a hotel kitchen, or enabling efficient maintenance in a factory, the right sink enhances productivity, safety, and compliance.
Don't choose based on aesthetics or lowest cost alone. Instead, evaluate material quality, configuration, installation method, functional accessories, and long-term durability.
When in doubt, consult a professional supplier who understands your industry's demands. A well-specified stainless steel utility sink isn't just an expense—it's an investment in reliability, hygiene, and peace of mind.
Published by Samsink– Trusted provider of commercial stainless steel sink solutions since 1995. All recommendations based on industry standards including NSF, uCPC, ANSI, and ISO guidelines.
