| Share | |
|---|---|
| Categories | Stainless Steel Top Mount Sinks |
| Brand | Samsink |
| Product Specifications | SW1250 |
| Attribute | With drainage board |
| Material | Stainless steel/304/316 |
| Scene | Home kitchen, cafe and light commercial, outdoor washing area, utility room |
| Accessories | Optional Choice |
| Interior finish | Brush |
| Color | Natural stainless steel finish |
| Service | OEM+ODM Accept |
| MOQ | 20 pcs for samples / 500 pcs for bulk production |
| Packing by | 6 pcs per export carton (individually wrapped) |
SW1250 · Stainless Steel Top Mount Series

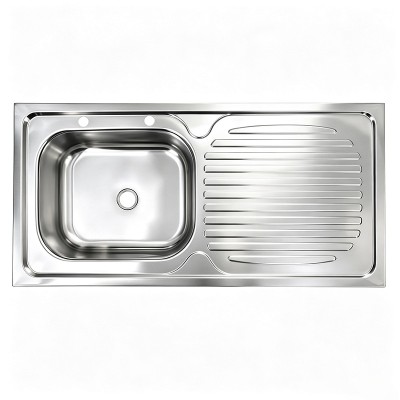

The SW1250 is a 1200 × 500 mm one-piece deep-drawn stainless steel single bowl sink with drainboard: a terraced drainer on one side, one extra-large sloped bowl on the other, and a body that can be installed drainer-left or drainer-right. It drops into a standard top-mount cutout, and an optional leg kit turns the same sink into a freestanding wash station.
Six features decide whether a drainboard sink still looks and works the same after two years of daily service. Each card below states the feature, what it actually changes in use, and what that saves you.
Feature Bowl and drainer are pressed from a single sheet in one draw, so there is no welded seam along the joint between them.
Advantage Water, grease and detergent have no joint to creep into, and there is no filler or caulk line to fail.
Benefit No seam rust and no re-sealing call-outs. The integrated drainboard stays hygienic on the underside as well as the top, which is what a hygiene inspection actually checks.
Feature The drainer is stepped into tiers with raised ribs instead of being one flat plate.
Advantage Run-off is guided step by step back towards the bowl, and plates sit above the surface instead of lying in a puddle.
Benefit The counter stays dry between washes and staff stop re-wiping the deck after every tray. On a busy pass that is the difference between one sink doing the work of two.
Feature The bowl base is pressed with a fall towards a φ110 mm outlet, available as φ160 mm on request.
Advantage Water leaves faster than a standard tap can put it in, even with the bowl full of pots.
Benefit No standing water at close of business, less scrubbing at the base radius, and a quicker turn between covers.
Feature The tap hole is drilled after the layout is confirmed, so the body can be installed bowl-left with drainer-right, or drainer-left with bowl-right.
Advantage One reference covers both the left-hand and right-hand working preference in a market.
Benefit Fewer variants in stock and fewer picking errors, while still filling a mixed container for several customers.
Feature Standard drop-in rim for a cutout in any countertop. An optional leg kit turns the same sink into a freestanding unit.
Advantage A drop-in stainless steel sink with drainboard needs no underside framing, and the leg kit adds a movable wash station without a second product line.
Benefit One purchase covers both a fixed kitchen fit-out and an outdoor or temporary wash point, which is exactly the mix distributors in warm-climate markets are asked for.
Feature A damping pad is bonded to the back of the bowl, with a second pad available for the drainer. The rim is rolled rather than cut flat.
Advantage The pad takes the drum out of running water, and the rolled edge stiffens a long 1200 mm panel.
Benefit Quieter in an open kitchen, and the sink beds down flat on the countertop instead of flexing when a full pot lands on the drainer.
The stainless steel single sink with drainboard measures 1200 mm from right to left and 500 mm from front to back. The plan below shows how the length is shared between the bowl and the terraced drainer, where the outlet sits, and which way the water runs.
Cutout and bowl opening: we confirm the cutout and the bowl opening against the production drawing on every order. Send your countertop drawing and we return a marked-up cutout sheet with the tap hole position and the drainer side you specified, usually within one working day.
| Model | SW1250 |
|---|---|
| Sink type | One-piece deep-drawn single bowl sink with dual drainers |
| Material | Stainless steel 304 |
| Bowl count | 1 bowl |
| Colour | Natural stainless steel finish |
| Surface finish | Satin (standard); polish or electropolished on request |
| Overall size | 1200 mm right to left × 500 mm front to back |
| Drainer | Terraced board, stepped ribs, falls back to the bowl |
| Rim and corners | Rolled edge, smooth rounded inner corners |
| Installation | Drop-in top mount; leg kit available for freestanding use |
| Drain hole | φ110 mm standard, φ160 mm optional |
| Tap hole | 1 hole, drilled to the confirmed layout |
| Soap dispenser hole | None |
| Sound deadening | Pad on the back of the bowl; optional pad for the drainer |
| MOQ | 20 pcs for samples; 500 pcs for bulk production |
|---|---|
| Lead time | 30 to 40 days after deposit received |
| Trade terms | EXW factory; FOB Shenzhen or Guangzhou; DDP destination port |
| OEM / ODM | Accepted; custom logo and specification supported |
| Waste kit | Optional: waste head only, or full set with waste pipe |
| Packing | Individual export carton, 6 pcs per carton |
| 40'HQ loading | 3204 pcs / 534 cartons |
| 20'GP loading | 1272 pcs / 212 cartons |
| Mixed loading | Supported alongside other items in the same container |
| Samples | Available; sample and freight cost borne by the buyer |
| Warranty | 24 months on manufacturing defects, non-transferable |
| Documents | MTC and RoHS report on request |
Faucet is not included. Specify the outlet size, the drainer side and the waste kit when you order, so the tap hole and outlet are prepared in the first production run.
Each sink is wrapped individually and packs six to an export carton, so the rim and the drainer edge are never load-bearing. Cartons are stackable and labelled with model, drainer side and outlet size, which keeps a mixed order sortable at the destination warehouse.
Tell us the destination port and we return a loading plan with the exact carton count for your quantity.
The drainer is the part that earns its space: a single sink with drainboard handles washing and drying in one footprint, so it fits rooms where a separate drying rack has nowhere to go.
One bowl wide enough for a roasting tray, plus a drainer for the daily wash-up, in the same run of worktop.
Glassware and small ware drain beside the bowl instead of on a cloth, which keeps the pass clear during service.
Fitted on legs, the same sink becomes a movable wash station for gardens, terraces and utility yards.
Deep sloped bowl for buckets and floor cloths, drainer for items that must not sit in water.
Standard. Fine linear grain hides handling marks and water spots, and is the finish most buyers choose for stock programmes.
Brighter, mirror-leaning surface for showroom and retail displays. Shows fingerprints faster, so it suits light-use settings best.
Passivated surface for food handling and coastal or high-humidity sites, where chloride pitting is the main long-term risk.
Specify from the drawing, not from a photo. Every SW1250 order is confirmed against a dimensioned drawing, and the same pack is available before you commit to a quantity.
The overall size is 1200 mm from right to left and 500 mm from front to back, with one bowl and a terraced drainer sharing the same pressed body. Bowl opening and cutout dimensions are confirmed on the production drawing for each order, so measure your countertop run against 1200 × 500 mm first and send us the layout for a marked-up cutout sheet.
Yes. The body is reversible: specify bowl-left with drainer-right, or drainer-left with bowl-right, and the tap hole is drilled to match after you confirm. Both layouts come from the same reference, so a mixed order does not need two SKUs. If your market asks for a right hand drainer sink by default, state it once on the order and we keep it on file.
No. The SW1250 has a flat deck with a rolled rim and a single tap hole, not a raised backsplash panel. If your project needs a splash guard against the wall, it is supplied as a separate stainless upstand, which also keeps the sink usable when it is fitted as a freestanding unit on legs.
Yes, with the optional leg kit. The same sink that drops into a countertop cutout can be bolted to legs and used as a free standing stainless steel sink with drainboard for outdoor kitchens, garden wash points, market stalls and temporary sites. The legs are ordered with the sink, not retro-fitted, so the fixing points are prepared at the factory.
The bowl is pressed for a φ110 mm outlet, with φ160 mm available on request for faster emptying. The waste is not included by default: choose either the waste head on its own, or the complete set with the waste pipe. Tell us the outlet size when ordering, because the hole is formed in the same pressing run as the bowl.
Tell us the drainer side, the outlet size and the destination port. We reply with a dimensioned cutout drawing, the packing plan and a price for your quantity, normally within one working day.
