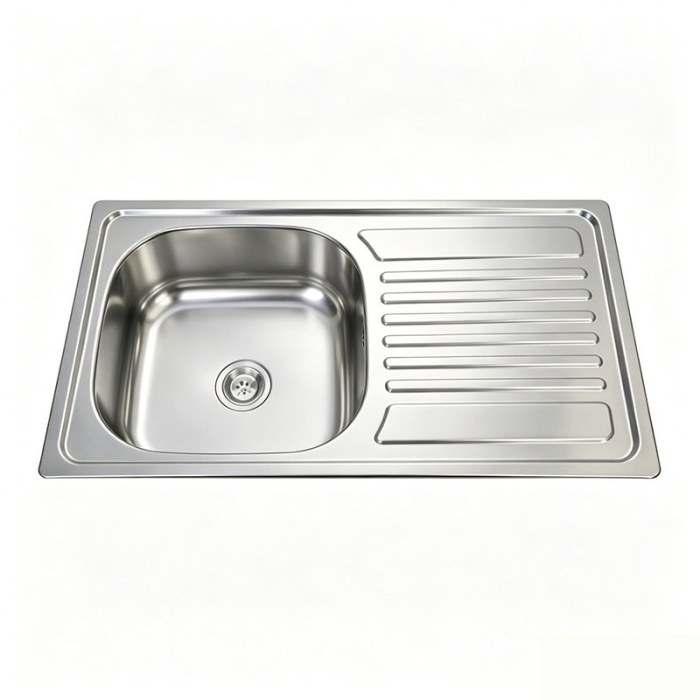

Stainless Steel Single Sink With Drainboard Round Single Bowl 304-Grade
| Share | |
|---|---|
| Categories | Stainless Steel Top Mount Sinks |
| Brand | Samsink |
| Model | DD403 |
| Installation Type | Top Mount / Drop-In |
| Material | 304 Stainless Steel |
| Interior finish | Satin / Polish / Electropolished |
| Bowl & drainer | Round single bowl + 1 drainer |
| Overall size | 750 x 400 mm |
| Bowl size | 380 x 340 x 135 mm |
| Drain hole size | 110mm / 70mm (optional) |
| Accessories | Waste kit optional |
| Scene | Kitchen, courtyard, public wash areas |
| Service | OEM + ODM Accept |
| MOQ | 500 Pcs |
| Packing by | 10 pcs / carton or 10 pcs / bundle |
| Lead time | 30-40 days after deposit |
| Warranty | 24 months, manufacturing defects only |
DD403 Stainless Steel Single Sink With Drainboard
The DD403 is a stainless steel single sink with drainboard built as a one-piece deep drawn body in 304 stainless steel: a round single bowl and a ribbed drainer deck are formed from one sheet in a single stamping, so there is no welded seam between bowl and drainer. It installs as a top mount (drop-in) sink and can be turned either way round, giving you a left-bowl or right-bowl drainer sink from one SKU. Overall size is 750 × 400 mm with a 380 × 340 × 135 mm bowl, supplied 10 pcs per carton or 10 pcs per tissue-wrapped bundle from an MOQ of 500 pcs.
- One-piece deep drawn body, no welded drainer joint
- Reversible: left or right drainer, same model
- 750 × 400 mm deck, 135 mm deep bowl
- OEM / ODM since 1995 · Foshan and Bangkok plants
Material
304 stainless steel
Bowl layout
Round single bowl + 1 integral drainer deck
Overall size
750 × 400 mm, bowl 380 × 340 × 135 mm
Installation
Top mount / drop-in, reversible left or right
Finish
Satin, mirror polish or electropolished
MOQ & packing
500 pcs · 10 pcs per carton or bundle
What the DD403 Actually Does for a Kitchen
Each row below reads as feature, advantage and benefit, so you can see what you are buying and what it changes on the worktop.
One-piece deep drawn 304 body
Feature The 304 stainless steel bowl and drainer deck are pressed from one sheet in a single deep drawing operation.
Advantage No weld seam runs between the bowl and the drainer, and no separate drainer is bolted on.
Benefit Nothing collects in a joint line and the body cannot leak at the drainer — one fewer failure point over a ten-year service life.
Ribbed drainer deck that drains back
Feature Rounded ribs are pressed into the drainer with a fall toward the bowl.
Advantage Water runs along the ribs and returns to the basin instead of standing on the deck.
Benefit Plates and cups air-dry over the sink, so the worktop stays clear and you can drop the separate dish rack.
Rounded inner corners, rolled rim
Feature Smooth radius corners inside the bowl, with a rolled rim around the full perimeter.
Advantage The rim adds rigidity and the corners have no sharp creases to trap food.
Benefit Faster wipe-down after service, no cut fingers, and a deck that stays flat and sits tight on the countertop.
Sloped bottom, optional anti-condensation coating
Feature The bowl base is pitched toward the outlet, and the underside can be coated.
Advantage Water leaves the bowl completely and the coating cuts condensation on the underside.
Benefit No standing water and a dry cabinet — important where the sink sits over a closed wooden carcass.
Sound deadening pad on the bowl back
Feature A pad is bonded to the rear of the bowl, with an optional second pad for the drainer.
Advantage It damps the drum-like ring of thin stainless sheet.
Benefit Running water and dropped cutlery sound noticeably quieter in an open-plan kitchen.
Reversible deck, legs optional
Feature The body is symmetrical enough to fit bowl-left or drainer-left, and accepts a leg set.
Advantage One SKU covers both handing options and can be turned into a free-standing unit.
Benefit Less stock to hold, fewer SKUs to forecast, and the same carton serves a countertop or an outdoor wash point.
DD403 Dimensions and Cutout
The figures below are the plan and section sizes you need to set out a top mount drainboard sink. All dimensions are in millimetres. Download the shop drawings further down the page if you need the full set for a tender submission.
Cutout
730 × 386 mm rectangular cutout for a top mount fit. Check the cutout against your own template before cutting the worktop.
Minimum cabinet width
860 mm. The carcass must be at least 860 mm wide to take the 750 mm deck and its clamp fixings.
Bowl capacity
380 × 340 × 135 mm bowl, pitched to a ⌀110 mm outlet so water leaves the basin completely.
The dimensional drawing above gives the deck sizes you set out against; the cutout and cabinet figures come from the shop drawing set and are the numbers to check before the worktop is cut. The shop drawing marks the bowl openings at ⌀114 mm and ⌀89 mm, while the outlet sizes quoted in the specification table are ⌀110 mm and ⌀70 mm — confirm the matching figure for the waste kit you plan to fit when you place the order.
Full Specification of the Stainless Steel Single Sink With Drainboard
Product data and trade terms for model DD403, quoted on the English-language specification sheet issued with every sample request.
Product data
| SKU / model | DD403 |
|---|---|
| Product grade | Economy |
| Sink type | Single bowl deep drawn sink with integrated drainboard |
| Bowls | 1 bowl |
| Material | 304 stainless steel |
| Steel grade | 304 / SUS 304 |
| Colour | Natural stainless steel finish |
| Surface finish | Satin, mirror polish or electropolished (optional) |
| Overall size (R to L) | 750 mm |
| Overall size (front to back) | 400 mm |
| Bowl length | 380 mm |
| Bowl width | 340 mm |
| Bowl depth | 135 mm |
| Drainer length | 335 mm (1 drainer) |
| Rim and corners | Smooth rounded corners with rolled edge |
| Installation | Top mount (drop-in); reversible left or right; legs can be fitted for mobile use |
| Bottom drainage | Sloped bottom, water drains fully with no standing water |
| Anti-condensation | Optional undercoating on the back of the bowl |
| Sound deadening | Pad on the back of the bowl; optional extra pad for the drainer |
| Tap ledge | None |
| Tap hole | None |
| Soap dispenser hole | None |
| Drain hole size | ⌀110 mm or ⌀70 mm (optional) |
| Waste kit | Optional; waste head only, or complete set with waste head and waste pipe |
| Application | Home kitchens, courtyards, and other public wash areas |
| Target markets | Southeast Asia, the Middle East, South America, Africa |
Ordering and service
| MOQ | 500 pcs or above |
|---|---|
| Lead time | Within 30–40 days on receipt of deposit |
| Trade terms | EXW factory, FOB Shenzhen or Guangzhou, DDP destination |
| OEM / ODM | Accepted; custom logo and custom specification supported |
| Packing (carton) | 10 pcs per carton, 780 × 430 × 310 mm |
| Packing (bundle) | 10 pcs per bundle, wrapped in tissue paper |
| 40′HQ loading | 7,560 pcs in 756 cartons, or 15,000 pcs in 1,500 bundles |
| 20′GP loading | 3,150 pcs in 315 cartons, or 6,800 pcs in 680 bundles |
| Samples | Available; sample and freight charges borne by the buyer |
| Warranty | 24 months on manufacturing defects only; excludes improper installation, misuse, abrasion and normal wear. Non-transferable, valid for the original purchaser. |
| Documentation | Raw material MTC and RoHS reports available on request |
Need the data sheet for a tender? MTC, RoHS and the full shop drawing set are released with the quotation.
Ask for the documentsPacking and Container Loading
Two pack formats ship from the same production line. Choose the one that fits how the sink is sold at the other end.
20′GP
3,150 pcs / 315 cartons, or 6,800 pcs / 680 bundles
40′HQ
7,560 pcs / 756 cartons, or 15,000 pcs / 1,500 bundles
Loading check
Bundle loading roughly doubles the pieces per container against the carton option
Waste kit: optional
Ship the sink on its own, or specify a waste head, or the complete set with waste head and waste pipe. Outlet size can be ordered as ⌀110 mm or ⌀70 mm to match the plumbing you already stock.
Where This Drop-In Drainboard Sink Is Specified
The DD403 is an economy-grade sink aimed at volume residential and light utility projects. In all of these settings bench space, not bowl volume, is normally the constraint — so a sink that carries its own drainer earns its place.
Building a full range? The DD403 sits in the stainless steel top mount sinks category with the rest of our drop-in models, and the SUS 304 single sink with drainboard is the step-up grade in the same format.
Build Details You Can Check Before You Order
Five views of the same body. What you approve on the sample is what arrives on the pallet.
Satin finish
Brushed directional grain. Hides fingerprints, the default for volume orders.
Mirror polish
Bright reflective surface for retail displays and higher-grade kitchen ranges.
Electropolished
Passivated surface with better corrosion resistance where hygiene matters.
Download the DD403 Installation Guide
The installation guide covers the cutout, sealing, clamping sequence and the reversible drainer setting-out in one PDF. Hand it to your installer before the worktop is cut.
DD403 installation guide — PDF
Cutout template, top mount sealing steps, waste and outlet sizing, and the left-bowl or right-bowl drainer positions. Print at 100% to check the cutout against the drawing.
Download installation guideAlso available on request
- Cutout and cabinet shop drawings
- Raw material MTC and RoHS reports
- Sample sink for fit-testing
DD403 FAQ
The questions buyers ask most often before placing a first order for this model.
What are the DD403 dimensions and what cutout does it need?
The deck is 750 mm left to right and 400 mm front to back, with a 380 × 340 × 135 mm bowl and a 335 mm drainer. The worktop cutout is 730 × 386 mm and the base cabinet must be at least 860 mm wide. The 400 mm figure is the nominal deck size — with the rolled rim the overall front-to-back dimension measures about 406 mm, so allow for the rim on a tight worktop.
Can the DD403 be installed with the bowl on the left or the right?
Yes. The body is reversible, so the same model can be fitted as a left-bowl, right-drainer sink or as a left-drainer, right-bowl sink. That means one SKU covers both handing options for a project instead of two.
Does the sink come with faucet, overflow or soap dispenser holes?
No. There is no tap ledge, tap hole or soap dispenser hole pressed into the deck, so the deck stays flat and a faucet is mounted on the worktop behind the sink or on a wall-mounted mixer. Custom tap hole positions can be added under OEM if your market expects a deck-mounted faucet.
What steel grade and finishes does the DD403 use?
The DD403 is made in 304 stainless steel. The sink body is pressed from one blank and the rim is rolled and thickened for rigidity. Surface can be supplied satin, mirror polished or electropolished. Because the bowl and drainer come off the same pressing, there is no welded drainer joint to corrode.
What is the MOQ, lead time and packing, and what does the warranty cover?
MOQ is 500 pcs, lead time is 30–40 days after deposit, and packing is 10 pcs per carton or 10 pcs per tissue-wrapped bundle. The warranty runs 24 months and covers manufacturing defects only; improper installation, misuse, abrasion and normal wear are excluded, and cover is non-transferable.
Request a DD403 Sample or a Volume Price
Send us the bowl handling you need, your outlet size and your target market, and we will come back with a price, a packing option and a dispatch date from the Foshan or Bangkok plant.
- Founded 1995 in Foshan, with a second plant in Bangkok
- OEM and ODM on size, finish, logo and packaging
- MTC and RoHS documents with every quotation
